EASY-PIC and Easy Clock Add-on Board

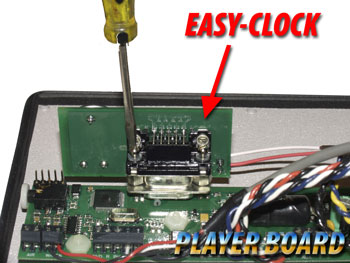

Installation of the Easy-Pic or Easy-Clock daughter boards are very simple.

CLICK HERE TO DOWNLOAD Enabling EC Mode (550k PDF)

Analog Heat Siphon

EASY PIC/EASY-CLOCK

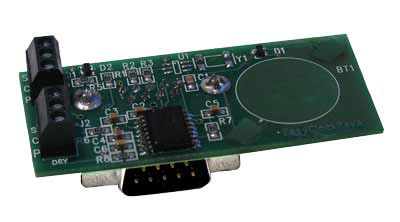

The new HEAT SIPHON EASY-PIC Player Plug-In is designed to let you hookup your Digital HEAT SIPHON to any Home, Pool or Spa automation system controller to permit MAXIMUM VERSATILITY.

Easy-Pic is a universal external controller player plugin.

Whether your controller heater hookup has two wires (heater on/off) or three wires (pool/spa set point & heater on/off) with either dry contacts or 24 volt ac output, easy-pic will handle it.

Just put your heat siphon player in the easy-pic mode and use the 2-button interface to set the easy-pool and easy-spa set points.

In addition you can still put your heat siphon player back in pool only or spa only modes at any time by just two button presses. the easy-pool and easy-spa set points are set using the player when it is in the easy-pic mode.

SALES

DOWNLOAD BROCHURE (1.6Mb pdf)

TECHNICAL INFO

Easy-Pic Installation

EC Mode with Pentair LX100EZ

J-Type POD Install

T-Type POD Install

Externl lControl-Analog Units
