HEAT SIPHON DIMENSIONS

TECHNICAL SPECS

Heat Siphon Footprint Same for ALL MODELS

Boxed Dimensions:

ALL 3.25HP & 5HP Models:

34”W x 39”D x 46”H

ALL 2.25HP Models:

34”W x 39”D x 36”H

Raw Unit Dimensions:

(includes conduit clearance)

ALL 3.25HP & 5HP Models:

32.5”W x 37”D x 39”H

ALL 2.25HP Models:

32.5”W x 37”D x 31”H

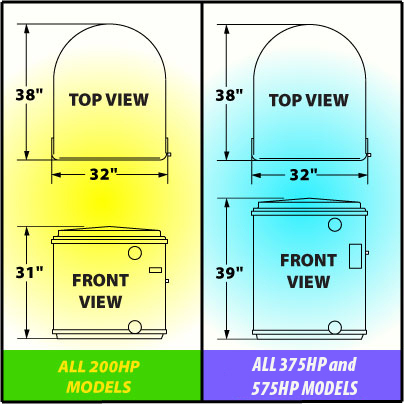

The drawing to the left shows the size of Heat Siphon's two basic model configurations.

All models have the same footprint (see TOP VIEW)

All 3.25HP and 5HP models have the same height dimension of 39" while all 2.25HP models are 31 inches high.

All models have the power connection junction box on the right side of the flat front panel. This right side of the front panel also has the grounding lug and condensation drain both located around the lower right corner.

ALLOW PLENTY OF SPACE TO PREVENT EXHAUST AIR RECIRCULATION AND TO PROVIDE SERVICE ACCESS

Where ever you locate your Heat Siphon make sure you allow plenty of space around it not only to prevent the cold exhaust air from re-circulating back into the inlet but also to allow access space should future service be required.

1. Allow 24 to 36 inches of open area all around the Heat Siphon for good air circulation.

2. Allow 36" minimum space along the flat front face where the two doors are located for service access.
